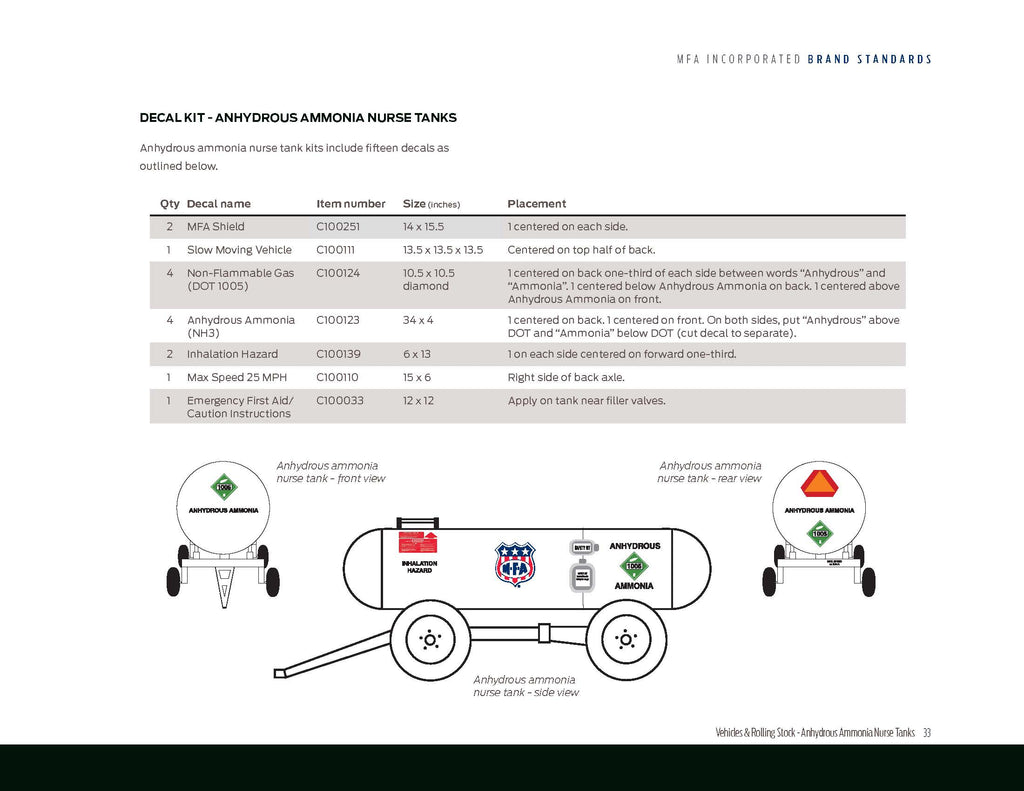

Anhydrous ammonia nurse tank kits include fifteen decals as outlined below.
Qty | Decal name | Item no | Size (inches) | Placement |
2 | MFA Shield |
C100251 | 15x15 |
1 centered on each side |
1 |
Slow Moving Vehicle |
C100111 |
13.5 x 13.5 x 13.5 |
Centered on top half of back |
4 |
Non-Flammable Gas (DOT 1005) |
C100124 | 10.5 x 10.5 diamond |
1 centered on back one-third of each side between words "Anhydrous" and "Ammonia." 1 centered below Anhydrous Ammonia on back. 1 centered above Anhydrous above Anhydrous Ammonia on front. |
4 |
CURVED Anhydrous Ammonia (NH3) or straight ANH decal (please specify in order notes section) |
C100152 or C100123 | 34 x 4 |
1 centered on back 1 centered on front On both sides, put "Anhydrous" above DOT and "Ammonia" below DOT (cut decal to separate) |
2 | Inhalation Hazard | C100145 | 17 x 7.5 |
1 on each side centered on forward one-third |
1 | Max Speed 25 MPH | C100110 | 15 x 6 |
Right side of back axle |
1 | Anh First Aid/Caution | C100033 | 12x12 |
Apply on tank near filler valves |
